ELECTRIC SCISSOR LIFTS

SC05E/SC06E

SC0928E/SC1328E

  • ISO

  • CE

  • ANSI

  • KCS

  • EAC

Automatic Braking System

Automatic pothole protection

Emergency stop

Tilt protection system

PRICE INQUIRY DOWNLOAD BROCHURES

Please submit your message online and we will contact you as soon as possible!

Model：
Title：
* Company：
* Name：
* Phone：
* Email：
* Content：
DOWNLOAD BROCHURES
Metric Units
Imperial Units
PRODUCT HIGHLIGHTS
  • 01
    Reduced maintenance costs

    Lower cost of ownership with highly versatile parts and components

    Rapid, convenient transportation with forklift slots and lifting point

    Double-door design for easy maintenance

  • 02
    Efficient and environmentally friendly

    Higher work efficiency

    Environmental protection, zero emissions

    Folding guardrails for easy transport

  • 03
    Reliable performance

    Small turning radius, flexible operation

    Pothole protection system as standard

FEATURES
Standard configuration
Proportional controlsSelf-lock gate on platformUnidirectional platform extension
Drivable at full heightNon-Marking TiresDC motor drive
Automatic Braking SystemEmergency Descent SystemEmergency stop
Tubing Explosion-Proof SystemFault diagnosis systemTilt protection system
All Motion AlarmHornSafety brackets
Fork Lift pocketsCharging Protection SystemFlashing beacon
Foldable Guard RailsAutomatic pothole protectionOverload sensor
Optional configuration
AC power on the platformPlatform working lightsAir pipe to the platform
DimensionsSC05E (Indoors/Outdoors)SC06E (Indoors/Outdoors)
Maximum Working Height (Indoor)(A)5.5m6.5m
Maximum Platform Height (Indoor)(B)3.5m4.5m
Maximum Working Height (Outdoor)(A)5.5m5.5m
Maximum Working Height (Outdoor)(A)3.5m3.5m
Overall Length (C)1.52m1.52m
Overall width (D)0.76m0.76m
Overall Height (Rails up) (E)1.91m1.99m
Overall Height( Rails down)1.53m1.61m
Platform Dimensions (Length/Width)(H)(F)1.36x0.74m1.36x0.74m
Maximum horizontal extension(G)0.6m0.6m
Minimum Ground Clearance (Stowed)0.053m0.053m
Minimum Ground Clearance (Raised)0.015m0.015m
Wheel Base1.11m1.11m
Performance
Platform Allowable Occupants (indoors)2/12/1
S.W.L.240kg240kg
S.W.L. On Extension113kg113kg
Travel Speed (Stowed)≯4.0km/h≯4.0km/h
Travel Speed (Raised)≯0.8km/h≯0.8km/h
Up/Down Time22/20sec25/27sec
Maximum Gradeability25%25%
Minimum Turning Radius1.35m1.35m
Maximum Working Slope1.5°/3°1.5°/3°
TireΦ255x76mmΦ255x76mm
Power
Batteries24V/100Ah/3HR24V/100Ah/3HR
Integrated Charger24V/15A24V/15A
Drive ModeElectric motor, front-wheelElectric motor, front-wheel
Lifting Motor24V DC/1.3kw24V DC/1.3kw
Drive Motor24V DC/0.4kw24V DC/0.4kw
Weight
Overall Weight920kg960kg
We reserve the right to make specification changes without notification.
All information is subject to change to reflect ongoingimprovements.202508.

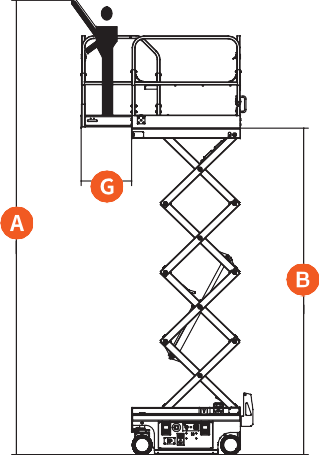

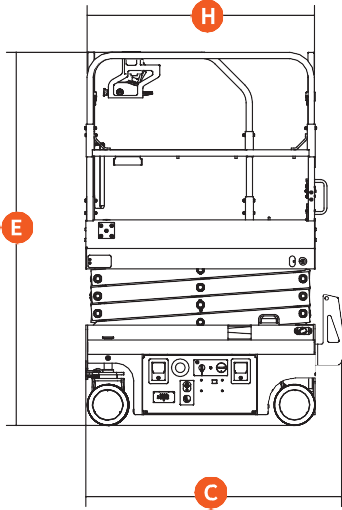

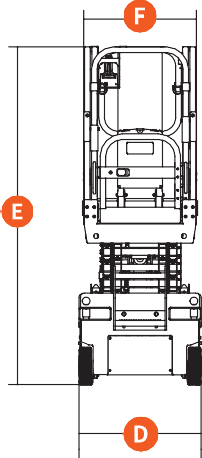

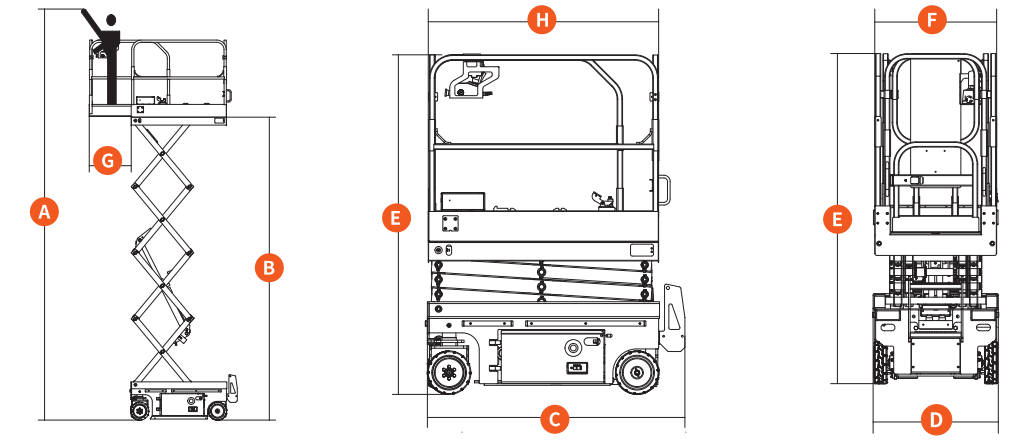

STRUCTURAL DIAGRAM
