Excellent trafficability with width of 1.27m.
Aluminum alloy platform for easy disassembly.
Full proportional joystick control.
Powered by battery,environment-friendly.
| Model | NAB11EJ |
| Specifications | |
|---|---|
| Max.Working Height | 11.3m |
| Max.Platform Height | 9.3m |
| Max.Up and Over Clearance | 4.3m |

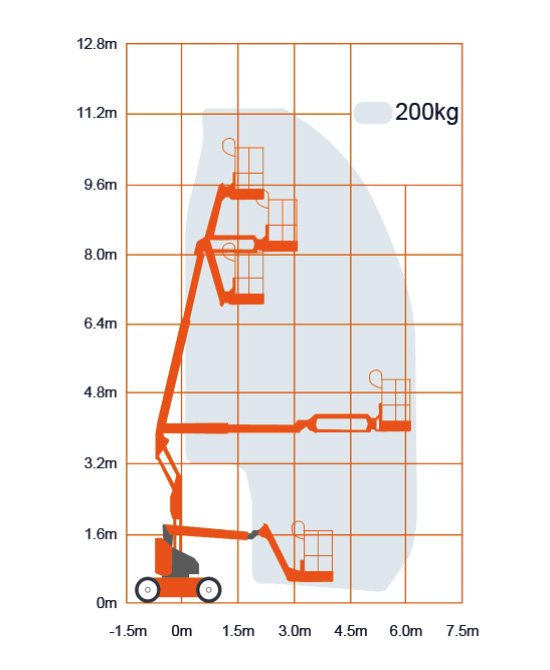

| Max.Working Radius | 6.25m |

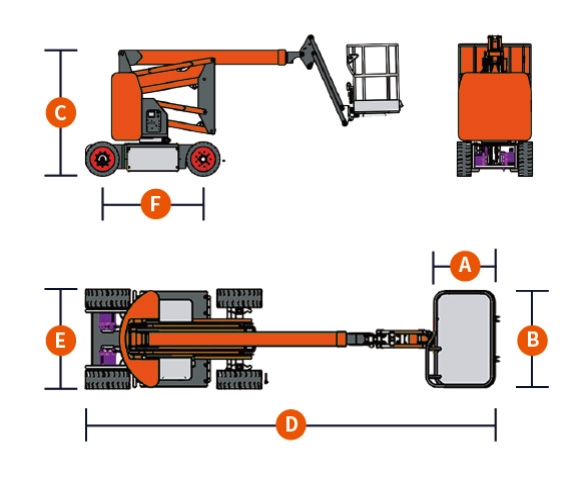

| A Platform Width | 0.7m |
| ⑧Platform Length | 1.2m |
| CHeight-Stowed | 2.0m |
| DLength-Stowed | 5.2m |
| ⑤Width | 1.27m |
| ⑥Wheelbase | 1.75m |
| Ground Clearance-Center | 0.14m |
| Standard container transportation | |
| Productivity | |
| Max.Lift Capacity | 200kg |
| Platform Occupancy | 2 |
| Platform Rotation | ±80° |
| Turntable Rotation | 355° |
| Vertical jib Rotation (up/down) | ±70° |
| Drive Speed-Stowed | 5.0km/h |
| Gradeability-Stowed | 0.35 |
| Max.Working Angle | 3° |
| Turning Radius(outside) | 2.82m |
| Drive and Steer | 2x2 |
| Weight | 4800kg |
| Tire | 22×7x17 |
| Power | |
| Battery | 48V/320Ah |
| Control Voltage | 24V |
| Pump Power | 4kw |
| Drive Motor | 3.3kw |
| Charger | 48V/35A |
| Hydraulic Tank | 20L |
| Emergency Power System | 24V |
| Optional | |
| LFP Battery | Optional |
| Solid Non-marking Tires | Optional |
