Excellent trafficability with width of 1.50m.
Aluminum alloy platform for easy disassembly.
Full proportional joystick control.
Powered by battery, environment-friendly.
Please submit your message online and we will contact you as soon as possible!
Please submit your message online and we will contact you as soon as possible!
Excellent trafficability with width of 1.50m.
Aluminum alloy platform for easy disassembly.
Full proportional joystick control.
Powered by battery, environment-friendly.
| Model | NAB13EJ |
| Specifications | |
|---|---|

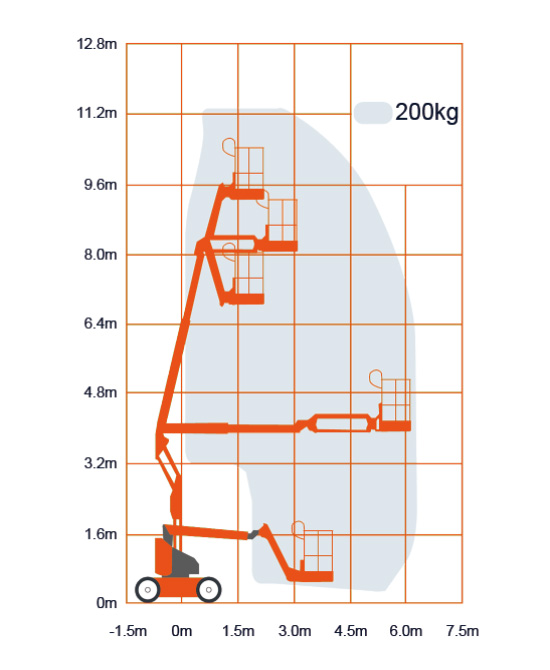

| Max. Working Height | 12.5m |
| Max. Platform Height | 10.5m |
| Max. Up and Over Clearance | 4.65m |
| Max. Working Radius | 7.15m |

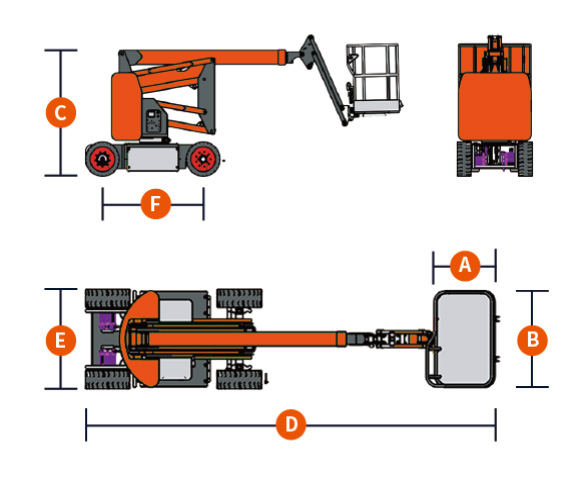

| ④ Platform Width | 0.7m |
| ⑥ Platform Length | 1.2m |
| ⑥ Height-Stowed | 2.0m |
| D Length-Stowed | 5.6m |
| ⑥ Width | 1.5m |
| ® Wheelbase | 1.95m |
| Ground Clearance-Center | 0.14m |
| Standard container transportation | |
| Productivity | |
| Max. Lift Capacity | 200kg |
| Platform Occupancy | 2 |
| Platform Rotation | ±80° |
| Turntable Rotation | 355° |
| Vertical jib Rotation (up/down) | ±70° |
| Drive Speed - Stowed | 5.0km/h |
| Gradeability-Stowed | 0.35 |
| Max. Working Angle | 3° |
| Turning Radius (outside) | 3.23m |
| Drive and Steer | 2x2 |
| Weight | 5000kg |
| Tire | 22 x 7 x 17 |
| Power | |
| Battery | 48V/320Ah |
| Control Voltage | 24V |
| Pump Power | 4kw |
| Drive Motor | 3.3kw |
| Charger | 48V/35A |
| Hydraulic Tank | 20L |
| Emergency Power System | 24V |
| Optional | |
| LFP Battery | Optional |
| Solid Non-marking Tires | Optional |
