Strong Load Capacity.
Flexible Turning.
Excellent Off-road Performance.
Lead Acid, AGM and Lithium batteries available.
Please submit your message online and we will contact you as soon as possible!
Please submit your message online and we will contact you as soon as possible!
Strong Load Capacity.
Flexible Turning.
Excellent Off-road Performance.
Lead Acid, AGM and Lithium batteries available.
| Model | NAB16EJ |
| Specifications | |
|---|---|

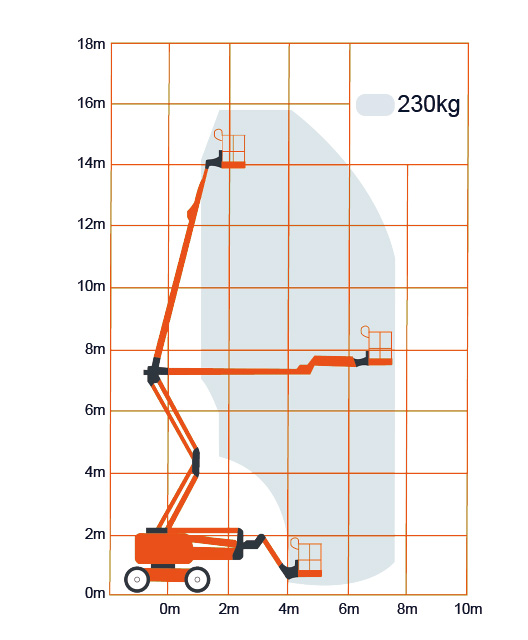

| Max.Working Height | 15.8m |
| Max.Platform Height | 13.8m |
| Max.Up and Over Clearance | 7.0m |
| Max.Working Radius | 7.5m |

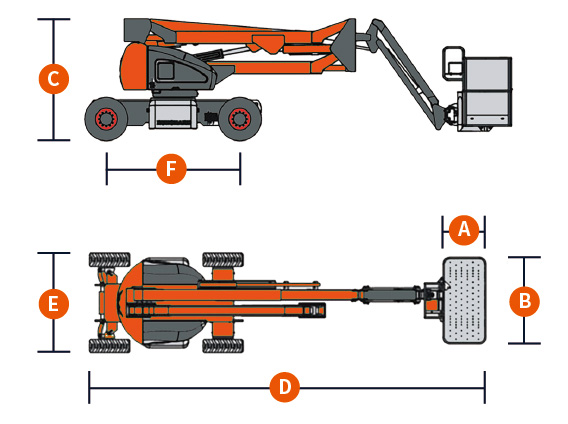

| A Platform Width | 0.76m |
| ⑧Platform Length | 1.4m |
| ⑥Height-Stowed | 2.0m |
| DLength-Stowed | 6.5m |
| ⑤Width | 1.76m |
| ⑥Wheelbase | 2.0m |
| Ground Clearance-Center | 0.25m |
| Standard container transportation | |
| Productivity | |
| Max.Lift Capacity | 230kg |
| Platform Occupancy | 2 |
| Platform Rotation | ±80° |
| Turntable Rotation | 355° |
| Vertical jib Rotation (up/down) | ±70° |
| Drive Speed-Stowed | 5.0km/h |
| Gradeability-Stowed | 0.3 |
| Max.Working Angle | 3° |
| Turning Radius(outside) | 2.83m |
| Drive and Steer | 2x2 |
| Weight | 5960kg |
| Tire | 250-15 |
| Power | |
| Battery | 48V/320Ah |
| Control Voltage | 24V |
| Pump Power | 4kw |
| Drive Motor | 3.3kw |
| Charger | 48V/35A |
| Hydraulic Tank | 20L |
| Emergency Power System | 24V |
| Optional | |
| LFP Battery | Optional |
| Solid Non-marking Tires | Optional |
