Strong Load Capacity.
Flexible Turning.
Excellent Off-road Performance.
Lead Acid, AGM and Lithium batteries available.
Model | NAB18EJ |
| Specifications | |
|---|---|

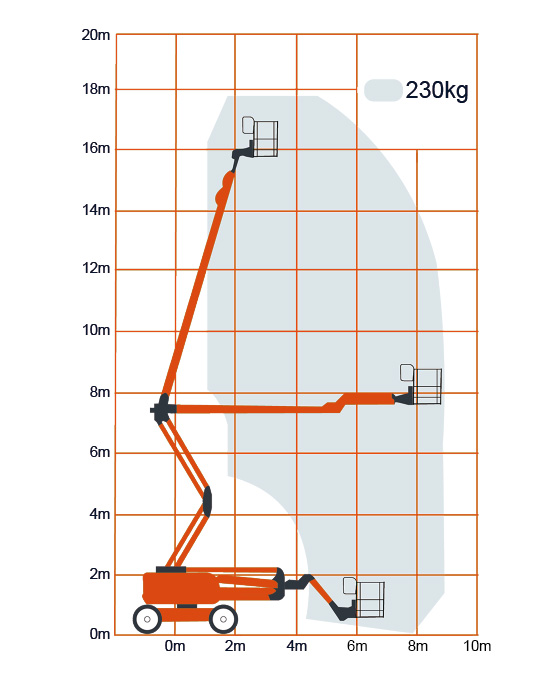

| Max.Working Height | 17.7m |
| Max.Platform Height | 15.7m |
| Max.Up and Over Clearance | 7.5m |
| Max.Working Radius | 8.9m |

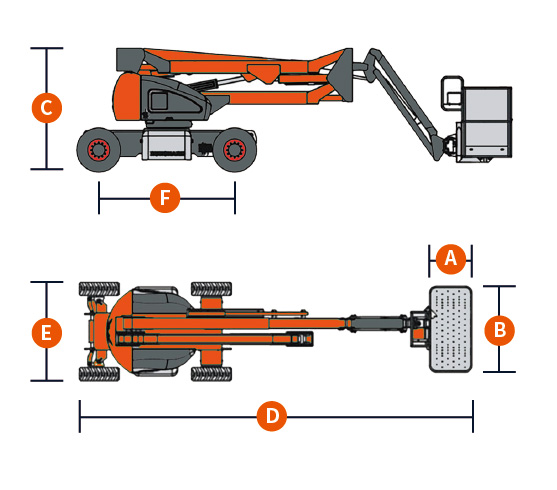

| A Platform Width | 0.76m |
| ⑧Platform Length | 1.4m |
| ⑥Height-Stowed | 2.0m |
| DLength-Stowed | 7.2m |
| ⑤Width | 1.90m |
| ⑥Wheelbase | 2.0m |
| Ground Clearance-Center | 0.25m |
| Standard container transportation | |
| Productivity | |
| Max.Lift Capacity | 230kg |
| Platform Occupancy | 2 |
| Platform Rotation | ±80° |
| Turntable Rotation | 355° |
| Vertical jib Rotation (up/down) | ±70° |
| Drive Speed-Stowed | 5.0km/h |
| Gradeability-Stowed | 0.3 |
| Max.Working Angle | 3° |
| Turning Radius(outside) | 2.97m |
| Drive and Steer | 2x2 |
| Weight | 6630kg |
| Tire | 250-15 |
| Power | |
| Battery | 48V/320Ah |
| Control Voltage | 24V |
| Pump Power | 4kw |
| Drive Motor | 3.3kw |
| Charger | 48V/35A |
| Hydraulic Tank | 20L |
| Emergency Power System | 24V |
| Optional | |
| LFP Battery | Optional |
| Solid Non-marking Tires | Optional |
