Advanced 230kg/350kg doubleload capacity
Four-wheel driven with grade alibity 45%.
Powered by battery,environment-friendly.
The weight of boom decreases,
| Model | NAB20EJ |
| Specifications | |
|---|---|

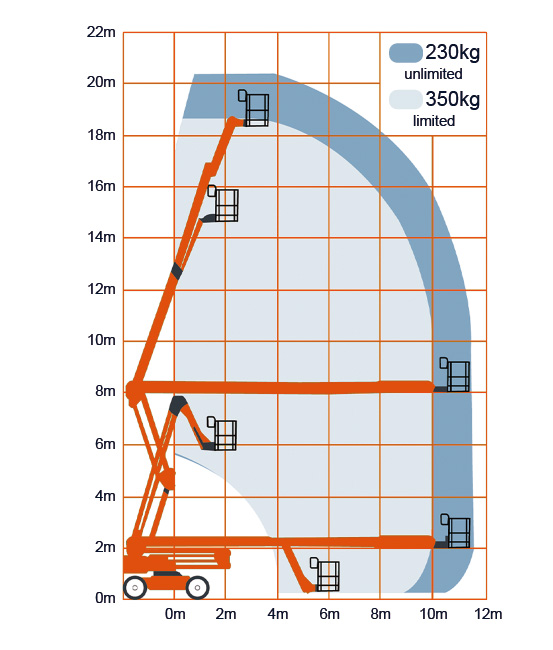

| Max.Working Height | 20.2m |
| Max.Platform Height | 18.2m |
| Max.Up and Over Clearance | 8.0m |
| Max.Working Radius | 11.6m |

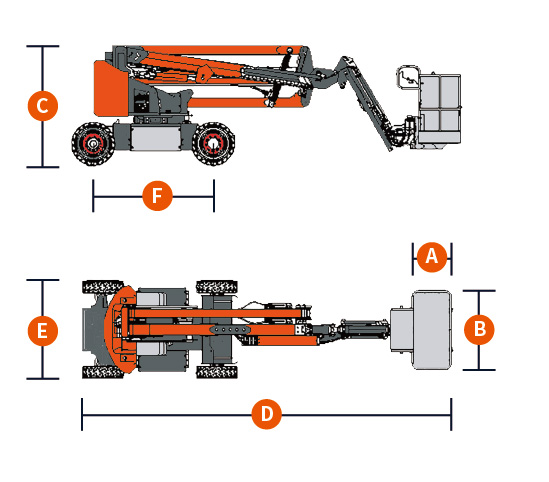

| A Platform Width | 0.76m |
| ⑧Platform Length | 1.8m |
| ⑥Height-Stowed | 2.38m |
| DLength-Stowed | 8.49m |
| ⑤Width | 2.49m |
| ⑥Wheelbase | 2.5m |
| Ground Clearance-Center | 0.3m |
| Standard container transportation | |
| Productivity | |
| Max.Lift Capacity | 230kg(unlimited)/350kg(limited) |
| Platform Occupancy | 45691 |
| Platform Rotation | ±80° |
| Turntable Rotation | 360°continuous |
| Vertical jib Rotation (up/down) | ±70° |
| Drive Speed-Stowed | 5.0km/h |
| Gradeability-Stowed | 0.45 |
| Max.Working Angle | 3° |
| Turning Radius(outside) | 4.18m |
| Drive and Steer | 4x2 |
| Weight | 9100kg |
| Tire | 33x12-20 |
| Power | |
| Battery | 48V/420Ah |
| Control Voltage | 12V |
| Pump Power | 12kw |
| Drive Motor | 3.3kw |
| Charger | 48V/60A |
| Hydraulic Tank | 105L |
| Emergency Power System | 12V |
| Optional | |
| LFP Battery | Optional |
| Solid Non-marking Tires | Optional |
