ELECTRIC SCISSOR LIFTS

SC10H/SC10E/SE10HN/SC10EN

SC2645H/SC2645ESC2632HN/SC2632EN

  • ISO

  • CE

  • ANSI

  • KCS

  • EAC

Automatic Braking System

Automatic pothole protection

Emergency stop

Tilt protection system

PRICE INQUIRY DOWNLOAD BROCHURES

Please submit your message online and we will contact you as soon as possible!

Model：
Title：
* Company：
* Name：
* Phone：
* Email：
* Content：
DOWNLOAD BROCHURES
Metric Units
Imperial Units
PRODUCT HIGHLIGHTS
  • 01
    Reduced maintenance costs

    Lower cost of ownership with highly versatile parts and components

    Rapid, convenient transportation with forklift slots and lifting point

    Swing-door design for easy maintenance

  • 02
    Efficient and environmentally friendly

    Higher work efficiency

    Environmental protection, zero emissions

    Folding guardrails for easy transport

  • 03
    Reliable performance

     Equipped with emergency descent system to ensure the personal safety of operators

     Pothole protection system as standard

FEATURES
Standard configuration
Proportional controlsSelf-lock gate on platform
Unidirectional platform extension
Drivable at full heightNon-Marking TiresHydraulic motor drive-SC10H/SC10HN
DC motor drive-SC10E/SC10ENAutomatic Braking SystemEmergency Descent System
Emergency stopTubing Explosion-Proof SystemFault diagnosis system
Tilt protection systemAll Motion AlarmHorn
Scissor Maintenance PropFork Lift PocketsFlashing beacon
Overload sensor
Flashing beaconFoldable Guard RailsOverload sensor
Optional configuration
AC power on the platformPlatform working lightsAir pipe to the platform
DimensionsSC10H (Indoors/Outdoors)SC10E (Indoors/Outdoors)SC10HN (indoors)SC10EN (indoors)
Maximum Working Height (A)10m10m10m10m
Maximum Platform Height (B)8m8m8m8m
Overall Length (C)2.48m2.48m2.48m2.48m
Overall width (D)1.15m1.15m0.81m0.81m
Overall Height (Rails up) (E)2.32m2.32m2.36m2.36m
Overall Height( Rails down)1.78m1.78m1.93m1.93m
Platform Dimensions (Length/Width)(H)(F)2.27x1.12m2.27x1.12m2.27x0.81m2.27x0.81m
Maximum horizontal extension(G)0.9m0.9m0.9m0.9m
Minimum Ground Clearance (Stowed)0.10m0.10m0.10m0.10m
Minimum Ground Clearance (Raised)0.019m0.019m0.019m0.019m
Wheel Base1.87m1.87m1.87m1.87m
Performance

Platform Allowable Occupants (indoors)2/12/122
S.W.L.450kg450kg230kg230kg
S.W.L. On Extension113kg113kg113kg113kg
Travel Speed (Stowed)3.2km/h4.0km/h3.2km/h4.0km/h
Travel Speed (Raised)0.8km/h0.8km/h0.8km/h0.8km/h
Up/Down Time27/36sec27/36sec32/35sec32/35sec
Maximum Gradeability25%25%25%25%
Minimum Turning Radius2.5m2.5m2.5m2.5m
Maximum Working Slope1.573°1.5°/3°1.573°1.573°
TireΦ381x127mmΦ381x127mmΦ381x127mmΦ381x127mm
Power

Lead-acid battery24V225Ah/20HR24V225Ah/20HR24V225Ah/20HR24V225Ah/20HR
Batteries Maintenance-free battery24V200Ah/3HR24V200Ah/3HR24V200Ah/3HR24V200Ah/3HR
Lithium battery25.6V/173Ah25.6V/173Ah25.6V/173Ah25.6V/173Ah
Integrated Charger24V/30A24V/30A24V/30A24V/30A
Drive ModeHydraulic motor, front-wheelElectric motor, front-wheelHydraulic motor, front-wheelElectric motor, front-wheel
Lifting Motor24V DC/4.5kw24V DC/4.5kw24V DC/3.3kw24V DC/3.3kw
Drive Motor
2x24V DC/0.82kw
2x24V DC/0.82kw
Weight

Overall Weight2655kg2655kg2275kg2275kg
We reserve the right to make specification changes without notification.

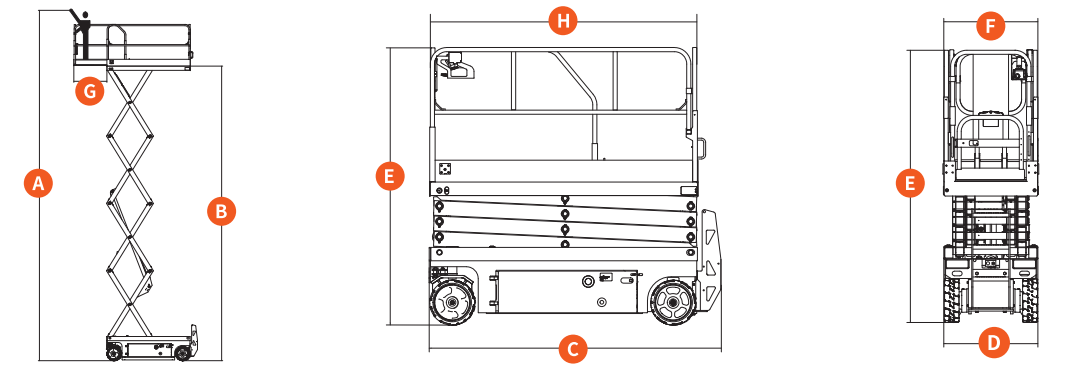

STRUCTURAL DIAGRAM
