ELECTRIC SCISSOR LIFTS

SC08HN/SC08EN

SC2032HN/SC2032EN

  • ISO

  • CE

  • ANSI

  • KCS

  • EAC

Automatic Braking System

Automatic pothole protection

Emergency stop

Tilt protection system

PRICE INQUIRY DOWNLOAD BROCHURES

Please submit your message online and we will contact you as soon as possible!

Model：
Title：
* Company：
* Name：
* Phone：
* Email：
* Content：
DOWNLOAD BROCHURES
Metric Units
Imperial Units
PRODUCT HIGHLIGHTS
  • 01
    Reduced maintenance costs

    Lower cost of ownership with highly versatile parts and components

    Rapid, convenient transportation with forklift slots and lifting point

    Swing-door design for easy maintenance

  • 02
    Efficient and environmentally friendly

    Higher work efficiency

    Environmental protection, zero emissions

    Folding guardrails for easy transport

  • 03
    Reliable performance

    Equipped with emergency descent system to ensure the personal safety of operators

    Pothole protection system as standard

FEATURES
Standard configuration
Proportional controlsSelf-lock gate on platformUnidirectional platform extension
Drivable at full heightNon-Marking TiresHydraulic motor drive-SC08HN
DC motor drive-SC08ENAutomatic Braking SystemEmergency Descent System
Emergency stopTubing Explosion-Proof SystemFault diagnosis system
Tilt protection systemAll Motion AlarmHorn
Scissor Maintenance PropFork Lift PocketsCharging Protection System
Flashing beaconFoldable Guard RailsAutomatic pothole protection
Overload sensor

Optional configuration
AC power on the platform                                                                                                 Platform working  lights  Air pipe to the platform
DimensionsSC08HN(Indoors/Outdoors)SC08EN(Indoors/Outdoors)
Maximum Working Height(A)8m8m
Maximum Platform Height(B)6m6m
Overall Length (C)2.48m2.48m
Overall Width (D)0.81m0.81m
Overall Height(Rails up)(E)2.24m2.24m
Overall Height(Rails down)1.81m1.81m
Platform Dimensions(Length/Width)(H)(F)2.27x0.81m2.27×0.81m
Maximum horizontal extension(G)0.9m0.9m
Minimum Ground Clearance (Stowed)0.1m0.1m
Minimum Ground Clearance(Raised)0.019m0.019m
Wheel Base1.87m1.87m
Performance
Platform Allowable Occupants (Indoors/Outdoors)2/12/1
S.W.L380kg380kg
S.W.L On Extension113kg113kg
Travel Speed (Stowed)3.2km/h4km/h
Travel Speed(Raised)0.8km/h0.8km/h
Up/Down Time32/35sec32/35sec
Maximum Gradeability25%25%
Minimum Turning Radius2.2m2.2m
Maximum Working Slope1.5°/3°1.5°/3°
Tireφ381x127mmφ381x127mm
Power
Lead-acid battery24V225Ah/20HR24V225Ah/20HR
Batteries          Maintenance-free battery24V200Ah/3HR24V200Ah/3HR
Lithium battery25.6V/173Ah25.6V/173Ah
Integrated Charger24V/30A24V/30A
Drive ModeHydraulic motor,front-wheelElectric motor,front-wheel
Lifting Motor24V DC/3.3kw24V DC/3.3kw
Drive Motor/2x24V DC/0.82kw
Weight
Overall Weight2140kg2140kg

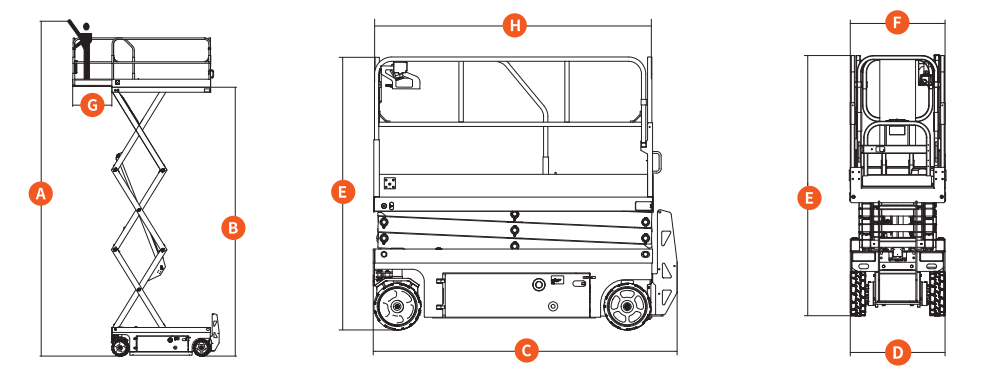

STRUCTURAL DIAGRAM
Video
APPLICATIONS
