Engine

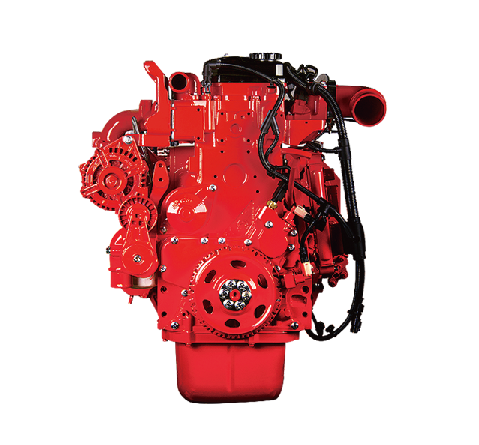

Equipped with a Cummins turbocharged diesel engine and high-pressure common rail fuel system, which has strong power, energy saving, and environmental protection, and meets the requirements of efficient operation.
The power system is equipped with an air-to-air cooling radiator to reduce the intake temperature of the engine, increase the intake air volume, and increase the engine power.
Hydraullc System
Adapting closed hydraulic static walking, electro-hydraulic direct control, and lifting with hydraulic balancing function, it offers good automatic adaptability and control performance.
To guarantee the thermal balance of the entire machine, the hydraulic system is fitted with an oil return radiator and a back pressure prevention device.
Well-known brands provide closed plunger pumps, electronically controlled multi-way valves, hydraulic cylinders, hydraulic motors, and electronically controlled pilot valves.
Fork
The work attachments can be readily replaced according to the work needs to satisfy the needs of "forking, hoisting, loading, grabbing, lifting, clamping, and moving" activities, realizing one machine with various applications.
The Cascade high-strength forks can double service life.
The quick-change shelf design allows for speedier accessory replacement.
Drive Axle
Use high-quality axles and gearboxes to get optimal performance.

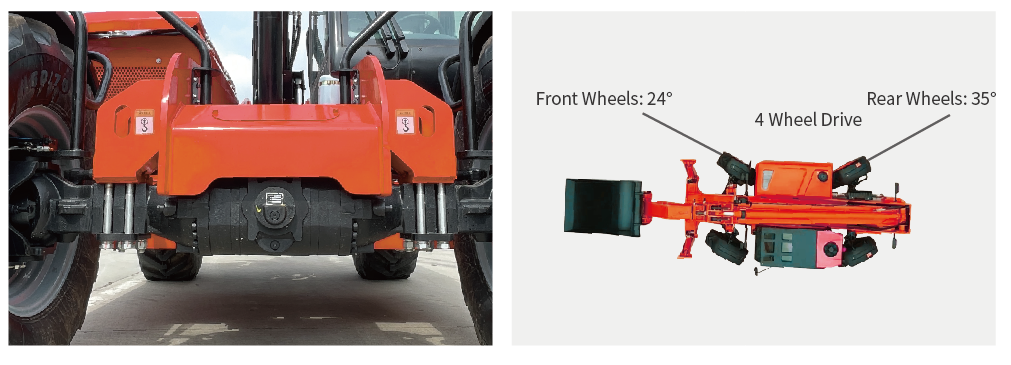

Adopt a completely hydraulic load-sensing steering system, four-wheel drive, and four-wheel steering, with the ability to vary between front-wheel, four-wheel, crab-shaped, and other steering modes to respond to changing work situations.

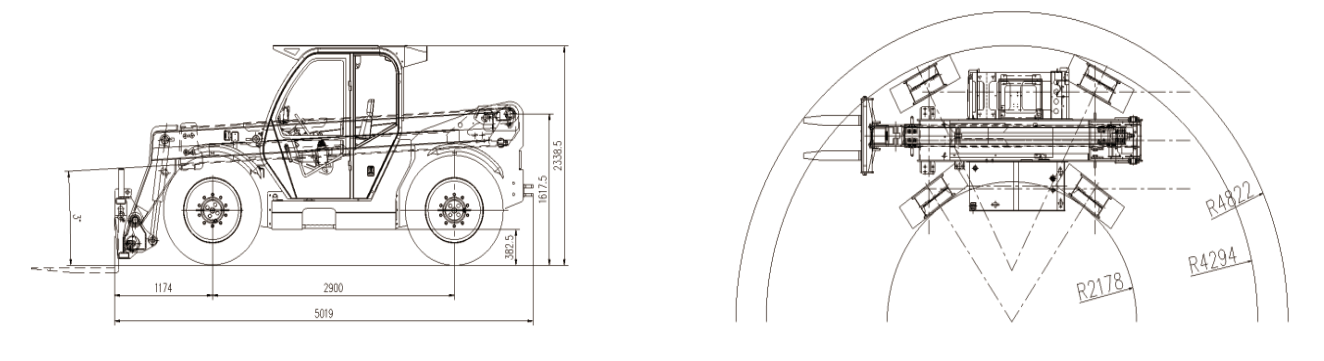

The turning radius is tiny, the maximum driving speed is 30km/h, and operating in a tight space is flexible, efficient, and convenient.
Working Equipment
The operational device is designed with a large-section, high-strength box structure, and finite element mechanics analysis for improved durability.

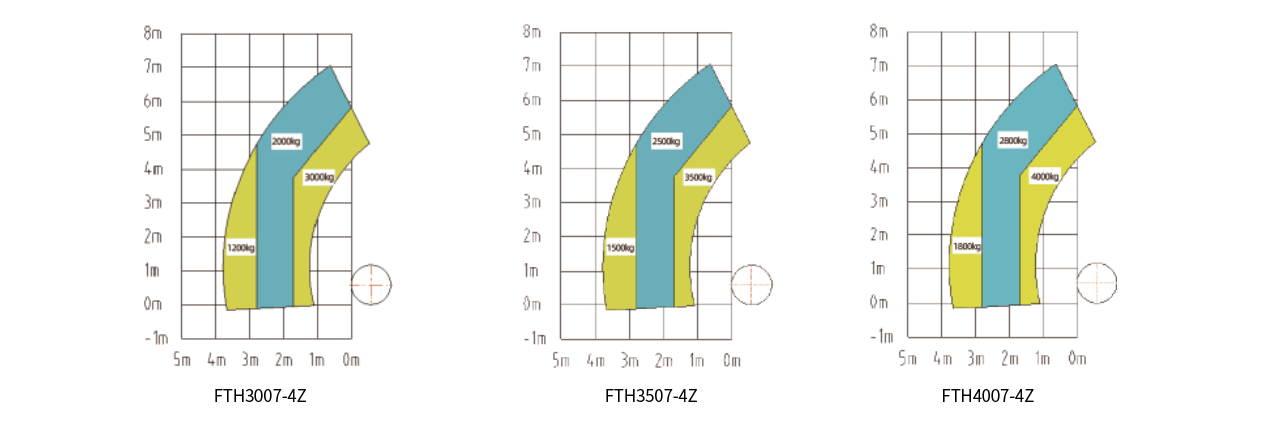

Torque limiter limits height, length, and weight for safe operation.
The pilot provides precise control over lifting, telescoping, and tilting actions, and two or more arm sections are selected based on different lifting heights.
Chassis
The extended wheelbase and box-shaped integrated frame enhance the chassis's rigidity, strength, and reliability.
The frame can be swung and leveled to ensure that the vehicle body operates smoothly even during complex procedures.

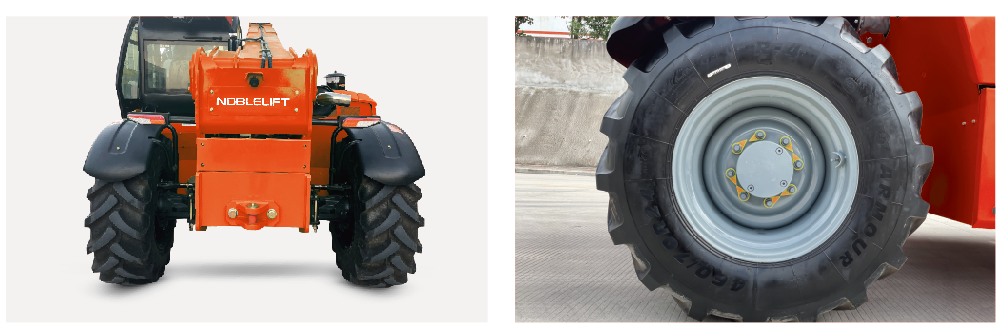

Tires
It has off-road herringbone tires, and the front and back axles can swing around the center with a 40% gradient. It provides excellent traction, passing, and off-road performance.
Braking System
Compared to traditional air brakes, Hydraulic wet brakes on both the front and back axles dissipate heat faster and provide more reliable and safe braking.
Cab
The spacious and comfortable driving space, low noise, good sealing, sunroof design, and fully open vision ensure a safe driving experience.
Features built-in heating and cooling air conditioning, as well as aircraft OPS premium chairs that are ergonomic and comfortable to sit on.
The adjustable steering gear, electronically regulated throttle, and integrated pilot handle provide a smooth and easy operation.
The multifunctional LCD display monitors the engine's functioning state, including speed, oil temperature, and water temperature.
Equipped with an anti-rollover cab that meets international safety standards, providing excellent driver protection.
Standard features include a reversing picture and buzzer for real-time monitoring of the working environment, decreasing blind spots and environmental risks.
Battery and Maintenance
Made with domestic, high-quality electrical components, maintenance-free batteries, and flame-retardant wiring, ensuring reliability and durability.
The structural parts, transmission system, and hydraulic system are well-organized, and the engine hood's left and right repair windows offer ample area for efficient maintenance.
It boasts excellent adaptability, high-cost performance, and simple and quick daily maintenance due to the source of domestically produced and standardized parts.
