FTHR4015-4Z

Rotate+ to expand additional choices.

The FTHR4015-47 forklift is a versatile machine with off-road capability and a telescopic arm, lt is a rotating telescopic forklift suitable for the construction industry and certain industrial fields. lt is the first of its kind in china.FTHR4015 is powered by a dieselengine, hydrostatic transmission, pilotcontrol, four-wheel steering and four-wheel drive (4Ws4WD) withoutriggers, drop arm and telescopic belt with hydraulic balancing, lifting height of 15 meters, load capacity of 4.0 tons, bodyrotation 360 ,maximum forward reach 10500 mm (distance from the front end of the front tire to the loadcenter),and can function as a telescopic forklift,crane,or working platfomm as needed.

资源 3288.png

FEATURES

Performance	Unit	FTHR4015-4Z
Max.capacity	kg	4000
Max.lifting height	mm	15000
Load Capacity at Max.Lift Height	kg	2500(Outriggers down) 1500(Outriggers up)
Max.forward reach	mm	10500
Load capacity @max.outreach	kg	1000(Outriggers down) 800(Outriggers up)
Boom Sections	-	3
Out triggertype	-	Hydraulic(2F/2R)
Lifting/Lowering	S	19/17
Extension/Retraction	S	19/16
Weight and dimensions
Length(without fork)	mm	6638
Overall width	mm	2550
Overall height	mm	3513
Wheel base	mm	2800
Ground clearance	mm	340
Turning radius(outside)	mm	5000
Cab width	mm	950
Fork angle(up/down)	o	12/120
Luffing angle	o	-2~70
Frame Leveling	+1- °	9
Overall weight	kg	16000
Forks dimension(L/W/T)	mm	100015050
Platform(L/W/H)	mm	1200800970
Engine
Manufacturer	-	DF Cummins
Emission standard	-	EURO 3
Model	-	QSB3.9-C125
Displacement/Cylinders	L	3.9/4
Rated Power/speed	kW/rpm	(93/2200)/(125/2200)
Max.torque/speed	N.m/rpm	(480/1350)/(670/2200)
Fuel tank	L	165
Battery	V	24
Transmission
Transmission type		Hydrostatic Transmission
Shifting	-	Automatic/Manual Shifting
Number ofgears(forward/reverse)	-	2/2
Max.Travellingspeed	km/h	25
Parkingbrake		Airpush drum brake
Service brake	-	Clamp-disc brake
Drawbar pull	kN	80
Gradeability	%	25
Hydraulic
Hydraulic pump type		Variable Displacement Plunger Pump
Pressure/Flow	MPa/Lpm	27/150
Hydraulic Oil	L	198
Wheels,etc
Standard tyres	-	16/70-24-24PR
Drive wheels(front/rear)	-	2/2
Steeringmode		2 wheel steer;4 wheel steer;Crabmode
Safety cabhomologation	-	ROPS/FOPS
Air-conditioning system	-	Cooling/heating
Controls	-	Electronic Joystick
Note:The above data are subject to change without prior notice

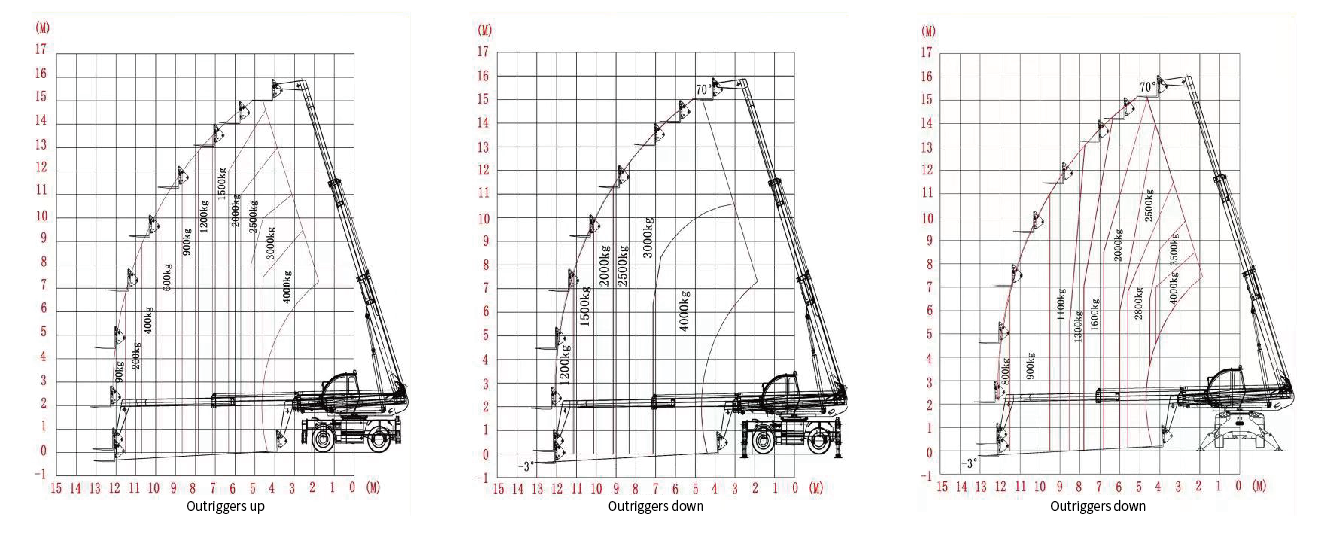

STRUCTURAL DIAGRAM
